Steel Structure Modular Operating Room with Customized Design ISO 7 Clean Room for Quick Install Hospital Use

Brand Name : YN

Place of Origin : Guangdong, China

MOQ : 1

Price : $26,000-30,000

Weight : 3000 kg

Wall Panel Material : 1.2mm rust-proof electrolytic steel plate or stainless steel plate

Interior Lining : High strength fire-resistant gypsum board or calcium silicate board

Cornering Method : R300 steel arc or Steel Octagonal Bevel

Installation Methods : Prefabricated hanging plate type, post-installation spray painting type

Service Life : More than ten years

Filter Media : H13 or H14 glass fiber

Cabinet Material : Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304

Air Speed : 0.25-0.60m/s

Medical Cabinet Material : 0.8mm -1.2mm thick SUS304 stainless steel

Door Sealing : Double sealing with aluminum structure and sealing tape

Door Operation : Automatic swing door with adjustable delayed closing

Control Panel Type : International capacitive screen with tempered glass surface

Control Panel Features : Industrial-grade control, high sensitivity, supports various communications

Cleanroom Door : Airtight with antibacterial coating option

Contact Now

Steel Structure Operating Room

Steel Structure Modular Operating Room with Customized Design ISO 7 Clean Room for Quick Install Hospital Use

Steel Structure Operating Room

a、R300 steel arc b、steel octagonal bevel

Installation Method

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

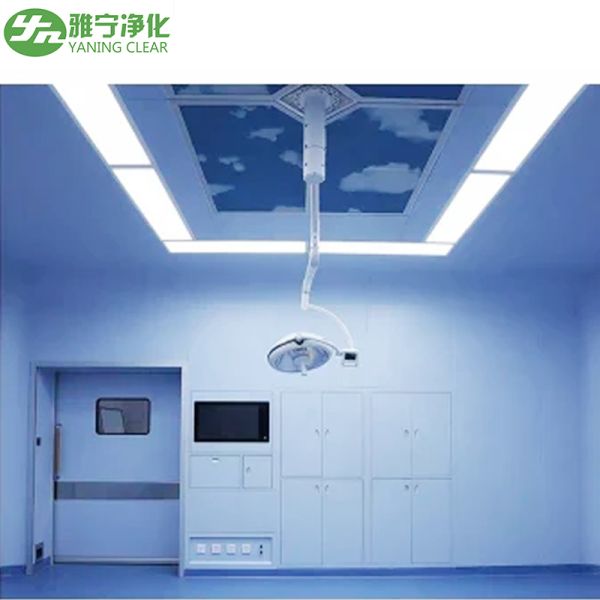

Product Description

The steel structure operating room is made of 1.2mm rust-proof andenvironmentally friendly electrolytic steel plate or stainless steel plate,and is lined with high-strength fire- resistant gypsum board or calciumsilicate board. The installation methods include prefabricated hangingplate type and post-installation spray painting type. lt has the effects offirm installation structure, rust resistance, scrub resistance, soundinsulation and heat preservation.The raw materials are all finished products produced and processed bythe original factory that meets the national standards. All seams aresealed with anti-aging weather-resistant glue. The four connectingcorners of the operating room are all processed into R300 arc oroctagonal bevel, so that the wall, the ceiling is in an airtight state, and itsservice life can reach more than ten years.Steel structures are widely used in many hospitals, pharmaceuticalfactories and top laboratories in Europe, America and Japan, and havenow become one of the more mature wall decoration materials foroperating rooms and clean rooms.

DETAILED IMAGES

STRUCTURE

Wall and ceiling panel, cleanroom steel doors, windows, Pvc flooring

HVAC

AHU, piping system, air ducting system

ELECTRIC

Lighting system, power distribution system for cleanroom,especially for HVAC system, producting equipment

AUTO-CONTROL

Auto-control,camera,display,speaker,etc

Detailed Materials for Operation Room

Laminar Flow Ceiling

①Filter Media: H13 or H14 glass fiber

②Cabinet Material: Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304
③Air Speed : 0.25-0.60m/s * Easy installation and filters replacement. * Simple fixation system.

④Air diffusion through metal grill or stretch fabric.

⑤Lateral duct connections.

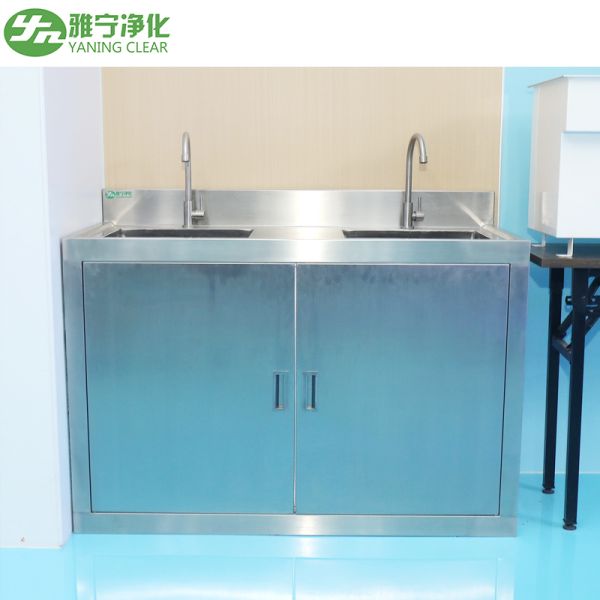

Medical Scmb Sink

①All 304 stainless steel seamlessly welded andpolished, durable ②Meet the requirements of surgical staff cleaningand disinfection operations

③No cleaning dead space, easy to do clean anddisinfect treatment, effectively prevent bacteriabreeding ④Equipped with fully autom atic sensor faucet toavoid contact and prevent cross infection

⑤Equipped with thermostatic adjustment valve,user can adjust to the suitable temperature

⑥New faucet design, the exteror can be directlyremoved for cleaning ⑦Leakage protection design to ensure the safety of

PLC Control Panel / Door Phone

1. The product has the characteristics of high transparency, high strength and high light transmittance; 2. Compared with the button-type operatingroom control panel，it is more convenient ; 3. International capacitive screen，the surface is tempered glass; 4. Industrial-grade control，system stability, high sensitivity，support for various communications，energy saving and consumption reduction; 5. The flat type is easy to clean and scratch resistant，and it can be touched after being wetted with water，and no dirt can be hidden. 6. It is easy to set and check the working status of various equipment in the operating room，fault conditions，and environmental parameters such as temperature and humidity in the operating room.

Hospital Door

①The surface of the door leaf can be optionallycoated with antibacterial coating to prevent cro ssContamination and meet the needs of a sterileenvionment ②Double sealing of leaf and frame with uniquealuminum structure and sealing tape, with goodairight effe ct ③The door opens and closes quickly,and alsoprovides dual doorinterlock function,locking everybit of clean air for you

④A wide range of product styles, materials andglass viewing window structures are available tomeet customer needs

⑤Automatic swing door features. high gualityimpored humanized control and operation of thedrive motor,automatic delayed closing (timeadiustable)also provide automatic,normalopen,normal closed,half open one-way passageand othermodes

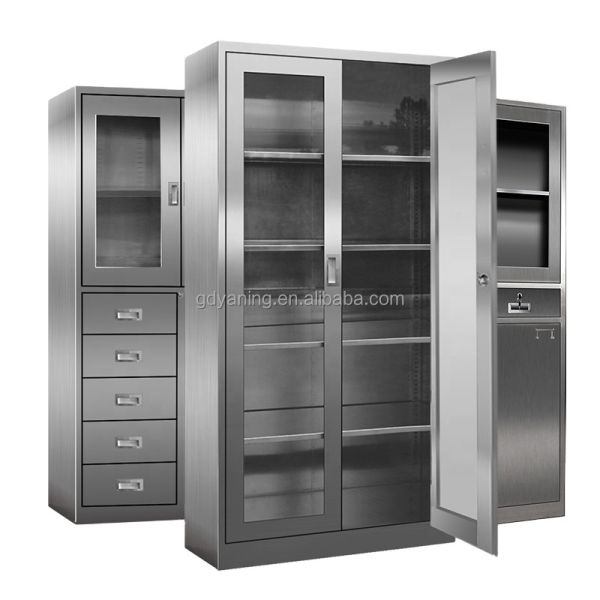

Medical Cabinets

Medical cabinets can be used by medical staff. According to the reasonable regulations of sorting and management classification, all items can be stored in designated medical cabinets. The material is 0.8mm -1.2mm thick SUS304 stainless steel. The structure is firm, eliminating dead ends, easy to clean, easy to use and beautiful in appearance.

Other Materials

Gas Socket Box Power Socket Box Writing Desk X-ray Viewing Box

Success case show

Recommend By Seller

Clean Bench Air Shower FFU Pass Box

Medical Scrub Sink Medical Cabinets Clean Booth Operating Room

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
